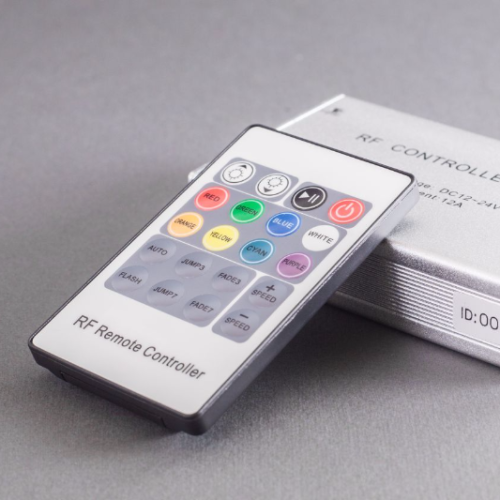

RGB controller radio remote control 12A
5
Description
RGB Controller is an integral element of the lighting system RGB . Thanks to him , you can extract from the tape LED RGB lighting the desired color or choose one of the functions of dynamic color changes .
It is designed to work with any source of RGB lighting powered by 12V DC . Attached to the controller remote control allows you to select one of the many options RGB light strip . With dynamic color changes will achieve great lighting effects at the touch of a button . The controller communicates with a remote control through radio waves - remote controller does not need to 'see the ' other. The maximum communication range is 50 meters .
The controller can be used to support any RGB lighting which does not exceed the total current 12A (after 4A for each channel) . If you connect the light source with higher power consumption it is necessary to use a suitable signal amplifier RGB .
Technical data
| The output | socket terminal |
| Input voltage range | 12V |
| The method of regulating | remote |
| Predefined colors | custom settings |
| Dimmable | YES |
| Number of preset programs | 6 |
| Range | 50 m |
| Weight | 350g |
| Pilot dimensions | 85 x 52 x 7 (mm) |
| Working temperature | -20 ~ + 50°C |
| Signal connector ( output ) | RGB / PWM control |
| Controller dimensions | 128,5 x 64,5 x 24 (mm) |
| Power connection | socket terminal |
| Speed control | YES |
| Way communication with remote control | radio |
| Max . current carrying capacity | 12A (3 x 4A) |
| Number of colors predefined | 8 |
| Additional information | save the settings after power is removed |
