RGB controller radio remote with touchpad 18 A
5
Description

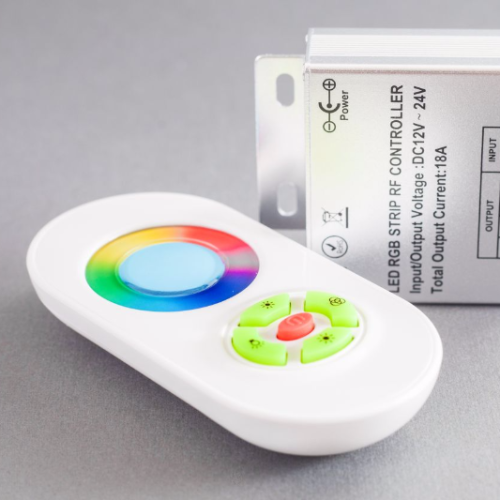

RGB Controller is an integral element of the lighting system RGB. Thanks to him, you can extract from the tape LED RGB lighting the desired color or choose one of the functions of dynamic color changes. It is designed to work with any source of RGB lighting powered by 12V DC.
Attached to the controller remote control allows you to select one of the many options RGB light strip. With dynamic color changes will achieve great lighting effects at the touch of a button. The controller communicates with a remote control through radio waves - remote controller does not need to 'see the' other. The maximum communication range is 50 meters. The controller can be used to support any RGB lighting which does not exceed the total current 18A (after 6A for each channel).
If you connect the light source with higher power consumption it is necessary to use a suitable signal amplifier RGB. The combination of the controller of the power supply is via the DC socket mounted in the housing. RGB has been derived from the controller 4-wire cable. Colours of wires corresponds to the color signal R-red, G-green, B-blue. The controller has a common anode (+) for all signals.
Technical data
| The output | RGB / sterowanie PWM |
| Input voltage range | 12V |
| The method of regulating | remote |
| Predefined colors | according to the color buttons on the remote control |
| Dimmable | TAK |
| Number of preset programs | 11 |
| Range | 20m |
| Weight | 140g |
| Pilot dimensions | 113.5 x 55 x 18 (mm) |
| Working temperature | -20 ~ + 50°C |
| Signal connector ( output ) | terminal |
| Controller dimensions | 65 x 56 x 24 (mm) |
| Power connection | terminal |
| Speed control | YES |
| Way communication with remote control | radio |
| Max . current carrying capacity | 18A (3 x 6A) |
| Number of colors predefined | - |
| Additional information | save the settings after power is removed |
